Diode Dynamics

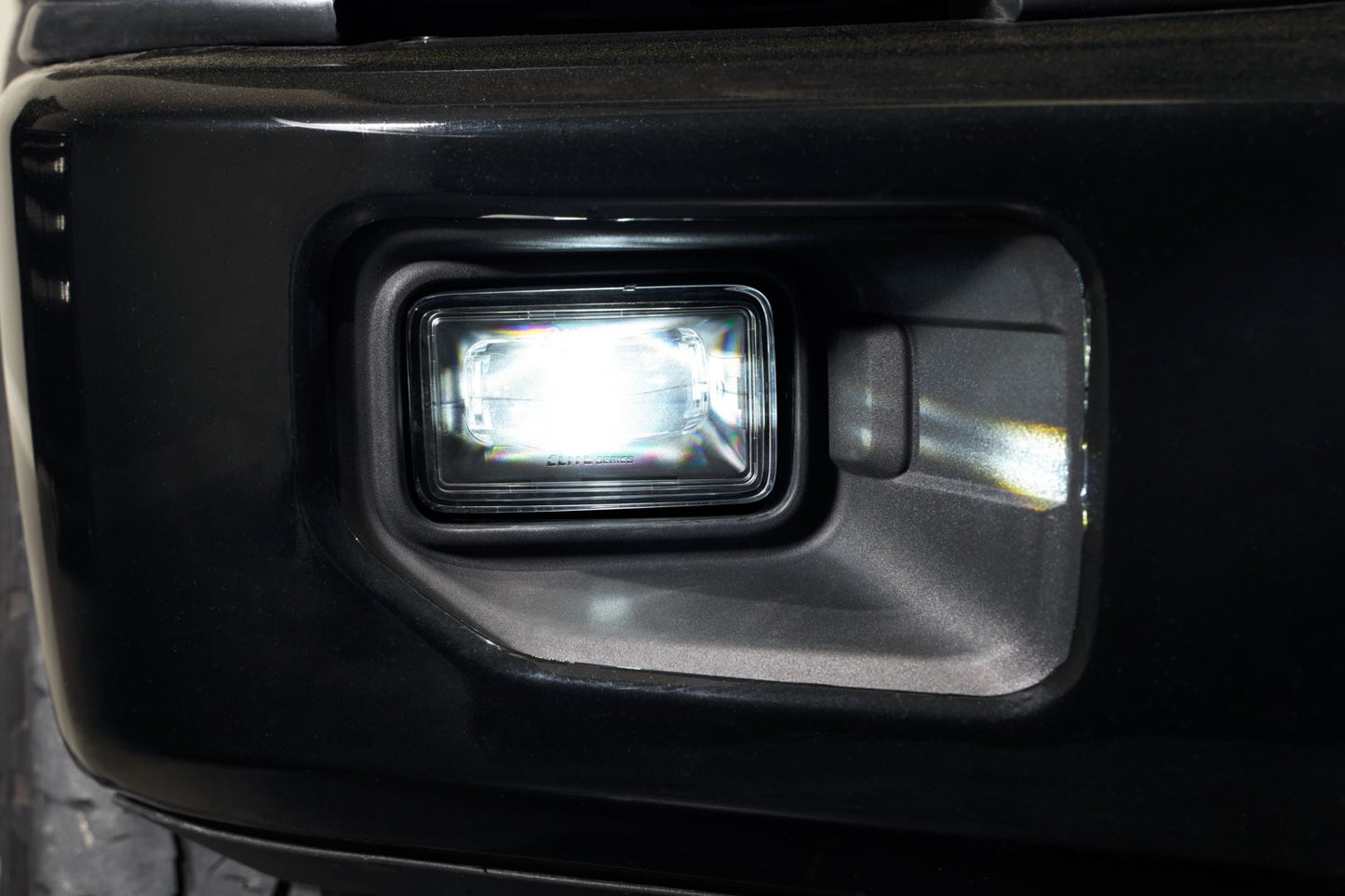

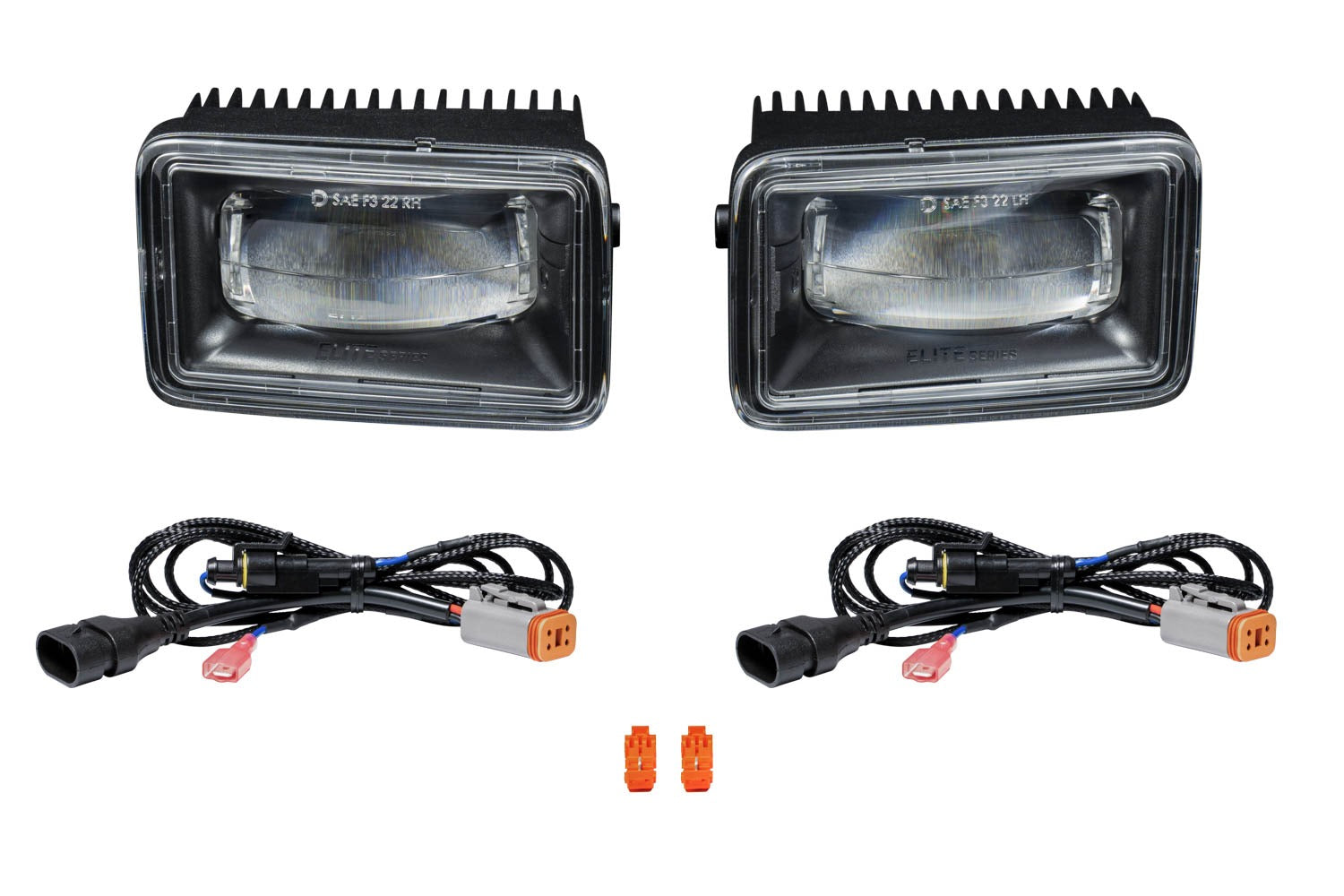

Diode Dynamics - Elite Foglamp Type F2 White (pair)

Diode Dynamics - Elite Foglamp Type F2 White (pair)

SKU:GBFG-DD5171P

Regular price $259.95 USD
Regular price $259.95 USD Sale price $259.95 USD
Sale Sold out
Quantity
<p><strong>Features</strong></p><ul><li>Provides double the output compared to factory halogen fog light</li><li>Sharp asymmetric beam pattern achieves 100-degree total spread</li><li>Distinctive integrated amber backlight</li><li>Road-legal fog light (SAE F3 compliant)</li><li>Plug and play main beam no modification needed</li><li>Engineered and assembled in USA</li></ul><br><p><strong>Overview</strong></p><p>Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards the Elite Series fog light delivers up to 5 times more output than halogen lamps. With a plug-and-play installation this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.</p><p><strong>Output that Outperforms. </strong>The Elite Series Fog Lamp optic produces an asymmectric light pattern that is wider than any other aftermarket fog lamp on the market with an 100-degree spread of intense light. Even with this extremely wide band of light the pattern is extremely smooth throughout with sharp cutoff to avoid glare to other drivers including a color flicker at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.</p><p><strong>Backlight Functionality.</strong> All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs. This feature can be wired to any constant 12-volt source for your desired vehicle function using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.</p>
  • Provides double the output compared to factory halogen fog light
  • Sharp asymmetric beam pattern achieves 100-degree total spread
  • Distinctive integrated amber backlight
  • Road-legal fog light (SAE F3 compliant)
  • Plug and play main beam no modification needed
  • Brand Name: Diode Dynamics
  • GTIN: 00195995131706
  • Add-On: N/A
  • Bulb Quantity: 0
  • Bulbs Included: No
  • Color Temp: 6000K
  • Compliance Rating: SAE J583 Foglamp Beam Pattern
  • DOT Approved: Yes
  • Fog Light Case Finish: Black
  • Housing Color: Black
  • Housing Shape: Rectangle
  • Input Power (watts): 16
  • Light Beam Pattern: Fog
  • Measured Output (lumens): 1650 lm
  • Mounting Hardware Included: Yes
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Operating Voltage: 9-16V
  • Street Legal: Yes
  • Terminal Type: Pin
  • Voltage: 9-16V
  • Wiring Harness Included: Yes
  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 10 x 5.7 x 5.3 inches
  • Weight: 2.75 POUNDS
