Diode Dynamics - SS6 LED Lightbar Kit For 2019-2021 Ford Ranger Amber Wide

Diode Dynamics - SS6 LED Lightbar Kit For 2019-2021 Ford Ranger Amber Wide

Regular price $379.95 USD
Regular price $379.95 USD Sale price $379.95 USD
Sale Sold out
Quantity

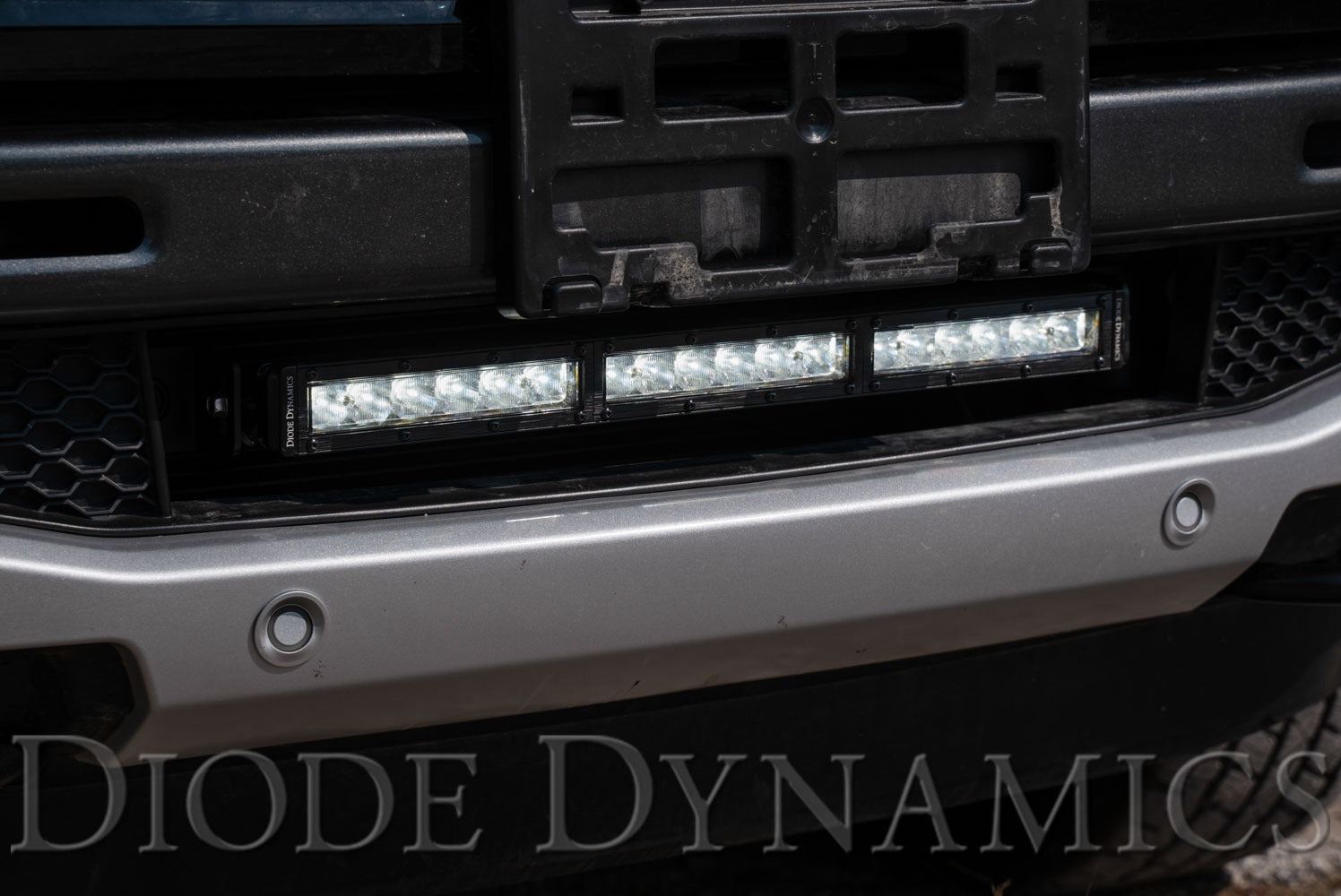

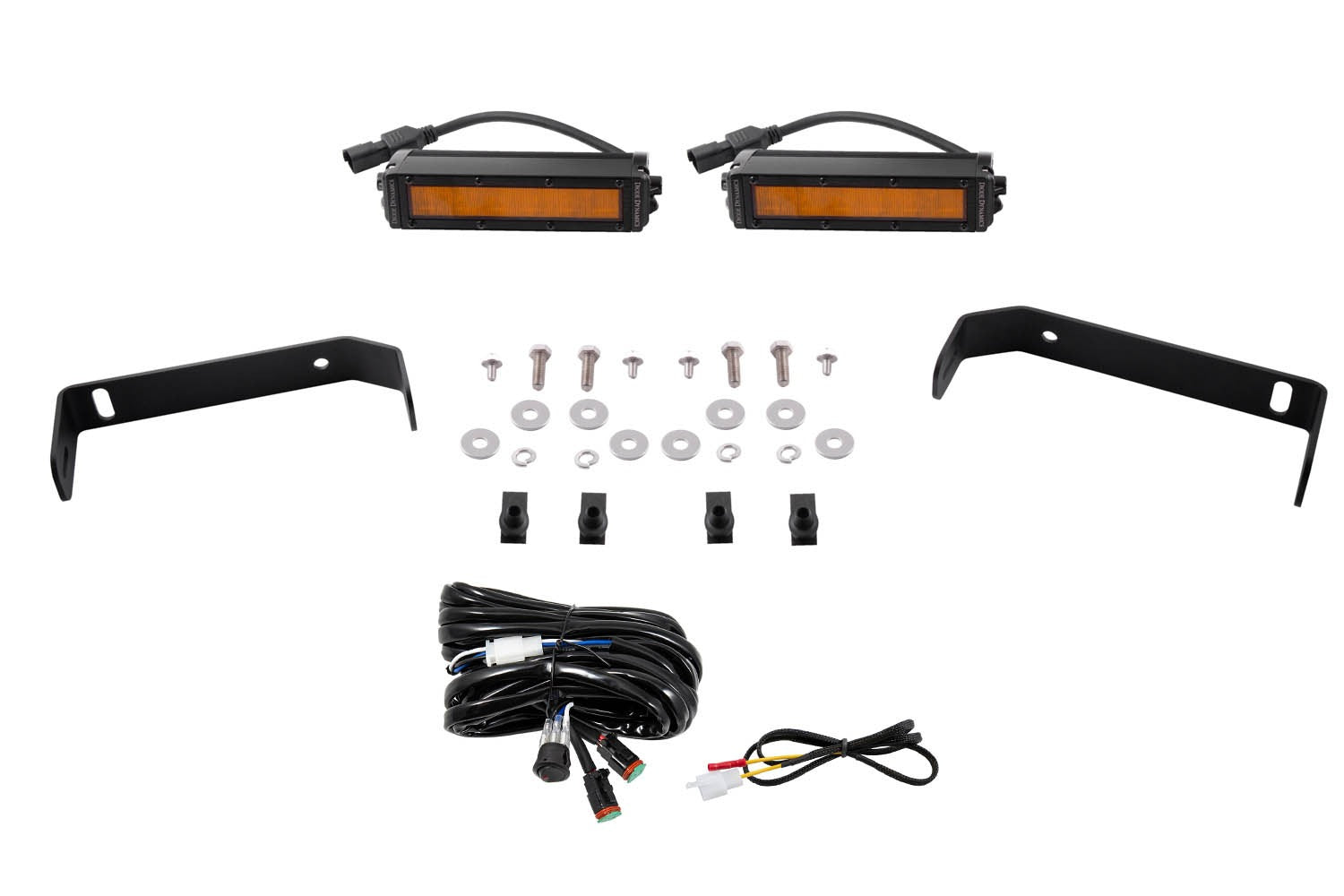

<p><strong>Features</strong></p><ul><li>Direct fitment compatible with Ford Ranger 2019+.</li><li>Allows you to mount two 6in light bars or one 18in light bar in the front bumper opening.</li><li>CAD-designed for perfect fitment and OEM-like appearance.</li><li>Utilizes existing mounting points for easy installation - no cutting or drilling required.</li><li>Highly durable powdercoated steel construction.</li></ul><br><p><strong>Overview</strong></p><p><strong>Perfect Fitment.</strong> The Stage Series LED Lightbar Kit compatible with Ford Ranger 2019-2021 from Diode Dynamics allows you to mount a pair of 6in light bars or one 18in light bar in the opening on the bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!</p><p><strong>Street Legal Output. </strong>The 6in kit isn't just for off-road! When installed as a pair and aimed in accordance with your state's regulations the Driving pattern meets <strong>SAE J581</strong> as a Driving/Auxiliary High Beam Light and the Wide pattern meets <strong>SAE J583 </strong>as a Foglamp for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.</p><p><strong>Designed For Performance. </strong>Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern much more focused than older LEDs on the market.</p>
  • Allows you to mount two 6in light bars in the lower grille opening
  • CAD-designed for perfect fitment and OEM-like appearance
  • Utilizes existing mounting points for easy installation - no cutting or drilling required
  • Powdercoated steel construction
  • Brand Name: Diode Dynamics
  • GTIN: 00691026127286
  • Add-On: N/A
  • Base Color: Black
  • Base Material: Steel
  • Bolt Grade: High
  • Bolt Thread Type: Medium
  • Bracket Color: Black
  • Bracket Material: Steel
  • Color Temp: 2000K
  • DOT Approved: Yes
  • Drilling Required: No
  • Grade Type: Performance
  • Housing Material: Aluminum
  • Input Power (watts): 26.6
  • Intensity (lux): 7400 CD
  • Intrusion Rating: IP68 Waterproof
  • Lens Material: Polycarbonate
  • Light Housing Color: Black
  • Light Shape: Four Sided
  • Measured Output (lumens): 800 lm
  • Mounting Hardware Included: Yes
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Operating Voltage: 9-16V
  • Sheen Level: Matte
  • Street Legal: Yes
  • Switch Included: No
  • Terminal Type: Pin
  • Universal Or Specific Fit: Specific
  • Voltage: 9-24V
  • Country of Origin: CN
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 15 x 9 x 12 inches
  • Weight: 10.088 POUNDS
