Diode Dynamics

Diode Dynamics - SS6 SAE/DOT LED Lightbar Kit For 2014-2023 Toyota 4Runner SAE/DOT White Driving

Diode Dynamics - SS6 SAE/DOT LED Lightbar Kit For 2014-2023 Toyota 4Runner SAE/DOT White Driving

Regular price $379.95 USD
Regular price $379.95 USD Sale price $379.95 USD
Sale Sold out
Quantity

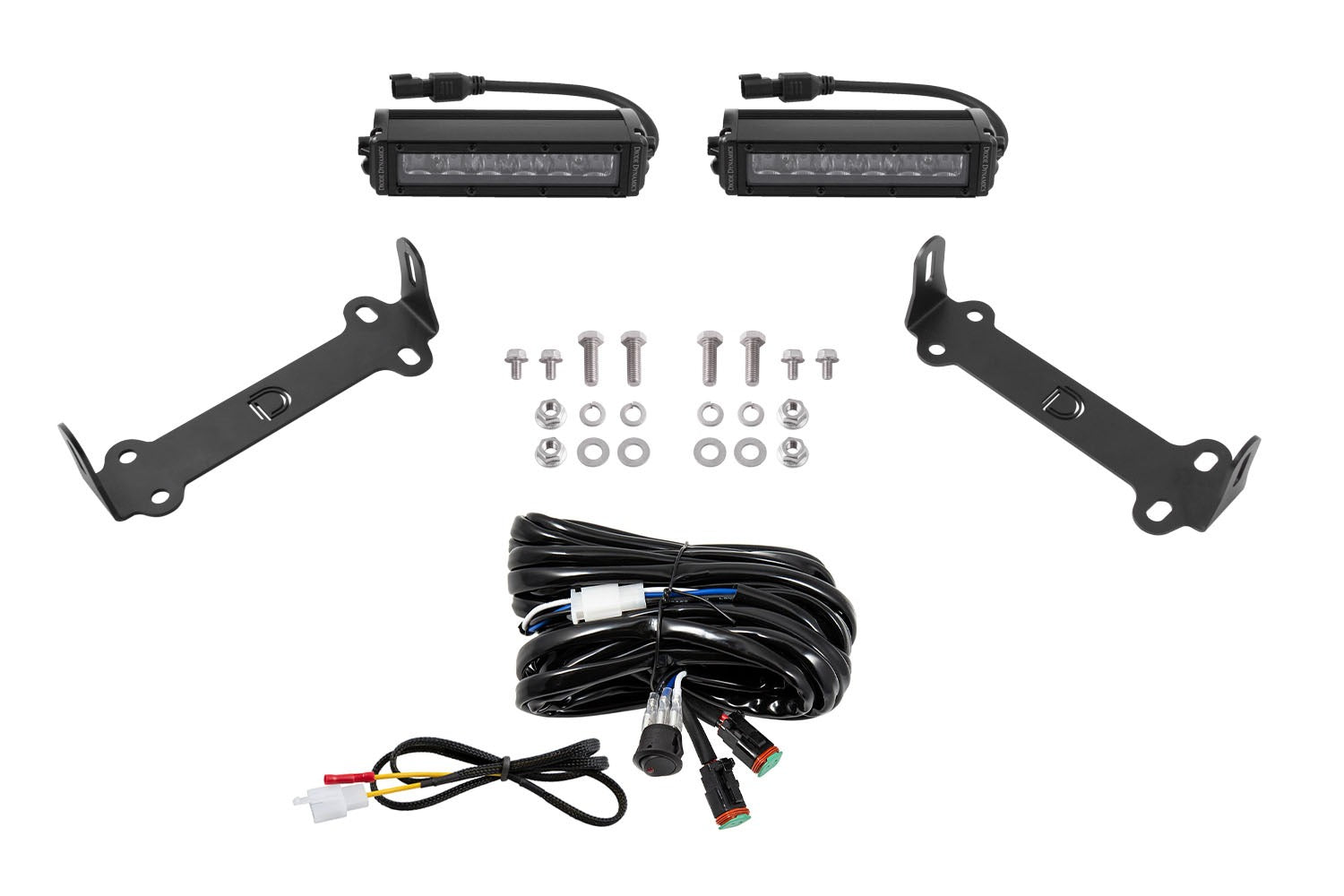

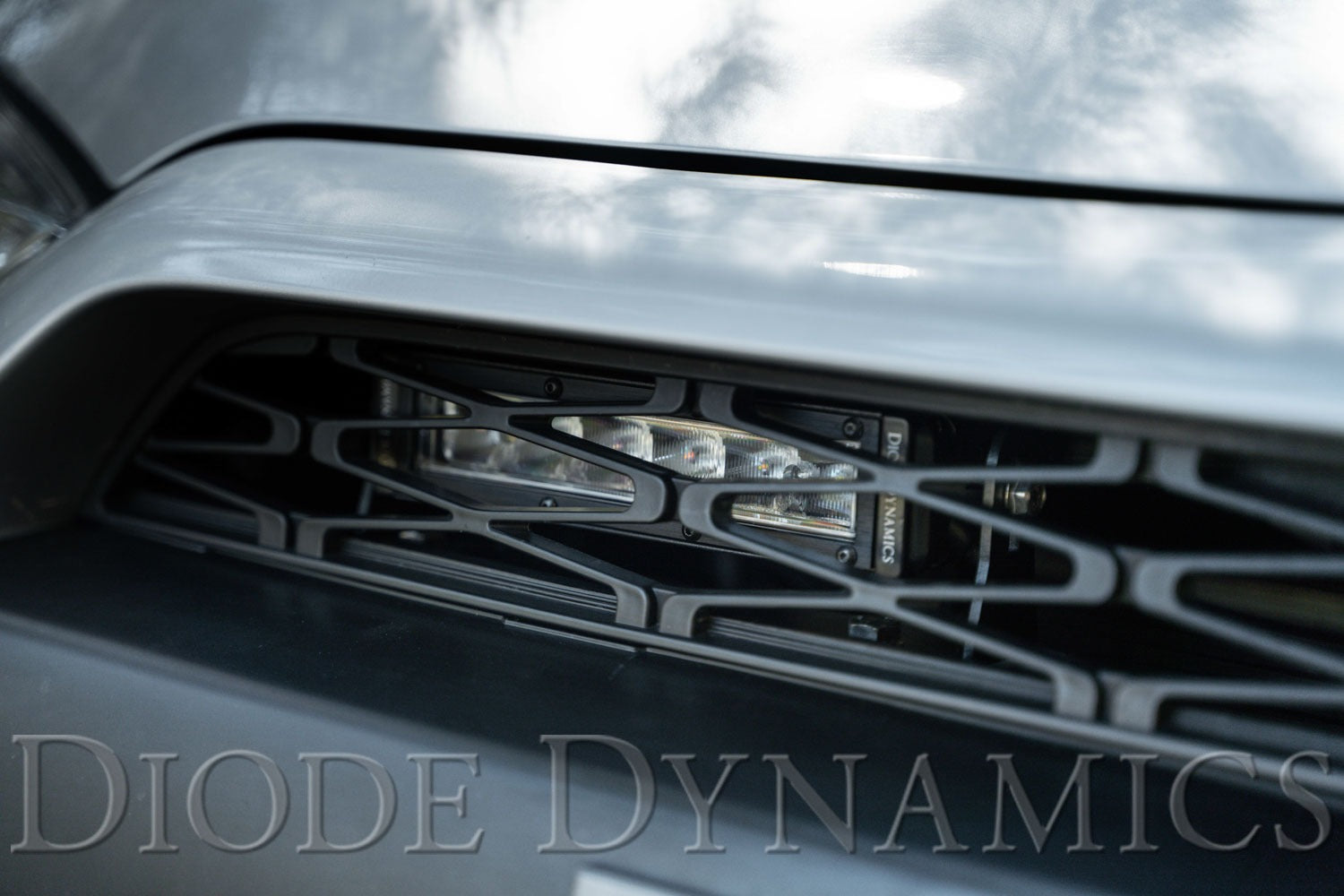

<p><strong>Features</strong></p><ul><li>Compatible with Toyota 4Runner 2014-2023.</li><li>Allows you to mount two 6in light bars in the upper grille opening.</li><li>Street legal output as Driving Lights.</li><li>Utilizes existing mounting points for easy installation - no cutting or drilling required.</li></ul><p>&nbsp;</p><p><strong>Overview</strong></p><p><strong>Perfect Fitment.</strong> The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2023 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!</p><p><strong>Street Legal Output. </strong>This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming installation and applicability). With the included plug-and-play wiring harness you can control the kit through your toggle switch.</p><p>The <strong>Driving</strong> pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.</p><p><strong>Designed For Performance. </strong> Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market.</p><p><strong>NOTE:</strong> Compatible with all Toyota 4Runner 2014-2019 trims but only compatible with 2020-2021 TRD Pro trim package.</p>
  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs with pure white color
  • Slim 42mm housing for low-profile fitment
  • Durable matte powdercoated extrusion
  • Brand Name: Diode Dynamics
  • GTIN: 00691026129099
  • Add-On: N/A
  • Bracket Color: Black
  • Bracket Material: Steel
  • Color Temp: 6000K
  • DOT Approved: Yes
  • Grade Type: Specialty
  • Housing Material: Aluminum
  • Input Power (watts): 26.6
  • Intensity (lux): 55 000 cd
  • Intrusion Rating: IP68 Waterproof
  • Lens Material: Polycarbonate
  • Light Housing Color: Black
  • Light Shape: Four Sided
  • Measured Output (lumens): 1 400 lm
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Operating Voltage: 9-16V
  • Street Legal: Yes
  • Switch Included: No
  • Terminal Type: Pin
  • Universal Or Specific Fit: Universal
  • Voltage: 9-24V
  • Country of Origin: CN
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 14 x 10 x 7 inches
  • Weight: 9.581 POUNDS
